Cast and Forged Parts
Below you’ll find a selection from more than 854 active items:
Motorgehäuse
| materials: | EN-GJS-500-7 |
| dimensions: | 800 x 563,5 x 830 mm |
| weight: | 411 kg |
Gehäuseoberteil
| materials: | EN-GJS-500-7 |
| dimensions: | 800 x 563,5 x 830 mm |
| weight: | 411 kg |
Gehäuseunterteil
| materials: | EN-GJL-250 |
| dimensions: | 800 x 418 x 580 mm |
| weight: | 263 kg |
Flügelrad
| materials: | EN-GJL-250 DIN EN 1561 |
| dimensions: | 1040 x 1040 x 192 mm |
| weight: | 192 kg |
Gehäuse
| materials: | EN-GJL-250 DIN EN 1561 |
| dimensions: | 248 x 226 x 221 mm |
| weight: | 16,8 kg |

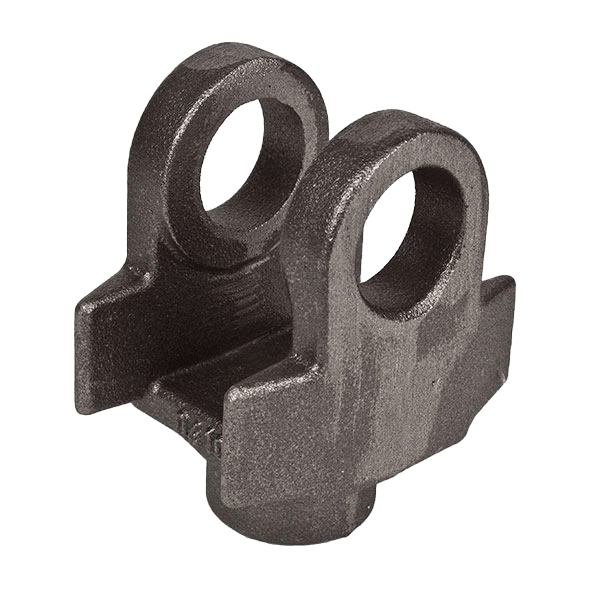

Lagergabel
| materials: | EN-GJS-500-7 DIN EN 1563 |
| dimensions: | 106 x 80 x 127 mm |
| weight: | 2,1 kg |

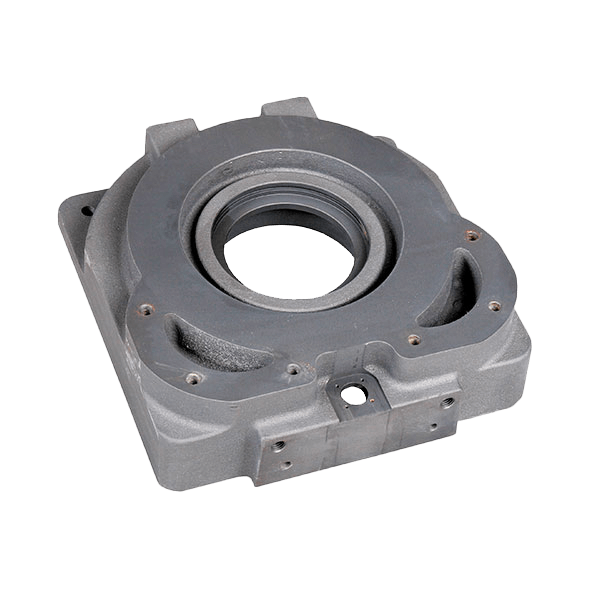

Lagerschild
| materials: | EN-GJL-250 DIN EN 1561 |
| dimensions: | 313 x 290 x 85 mm |
| weight: | 28,5 kg |
Sperrstück
| materials: | EN-GJS-400-15 DIN EN 1563 |
| dimensions: | 68 x 62 x 30 mm |
| weight: | 0,3 kg |
Treibscheibe
| materials: | EN-GJL-300 DIN EN 1561 |
| dimensions: | 550 x 550 x 562 mm |
| weight: | 118 kg |
Gehäuse
| materials: | EN-GJL-250 DIN EN 1561 |
| dimensions: | 453 x 426 x 305 mm |
| weight: | 39,5 kg |
Augenschraube
| materials: | EN-GJS-600-3 |
| dimensions: | 221 x 90 x 90 mm |
| weight: | 6,6 kg |
